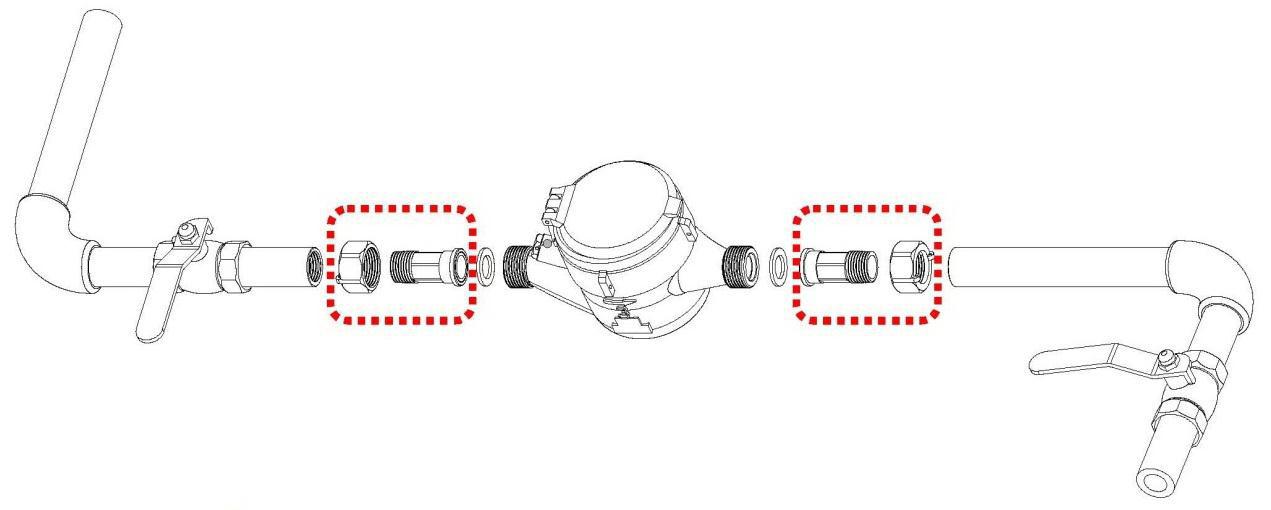

THE CONNECTOR is using for easy to connect the water meter to the pipe, detail as:
Working Condition:
GALONMETER recommend as:
Temperature: ≤50℃for cold water meter & 90℃for hot water meter; Water pressure: Max. water pressure: ≤PN16;
Construction:

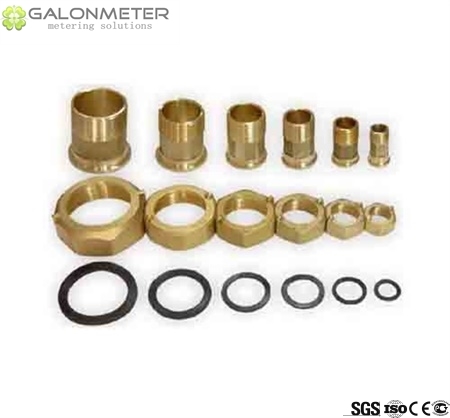

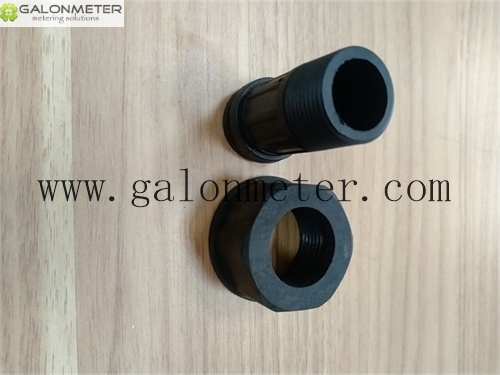

A set of connector with 2 pcs of Coupling pipe & 2 pcs of Rubber Gasket & 2 pcs of Coupling Nut;
Material:
CONNECTOR STANDARD
Coupling Pipe: Brass

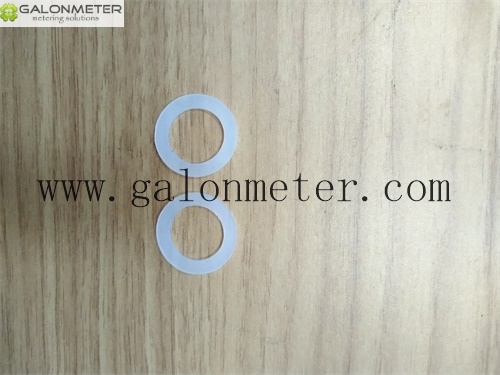

Rubber Gasket: Rubber III-2 for cold & EPRM for hot Coupling Nut: Brass
Thread Standard:
Thread of the Coupling pipe: ISO 7/1 (BS 21 AS OPTION) Thread of the Coupling nut: ISO 228/1 (BS 2779 AS OPTION)

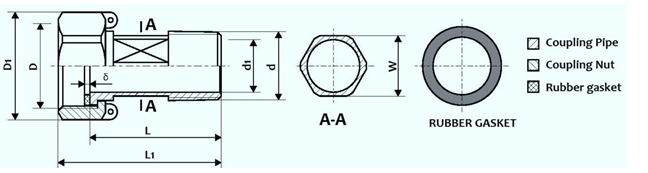

Dimension:
Meter Size
Dn15
Dn20
Dn25
Dn32
Dn40
Dn50
Hole Diameter
mm
d1
14
20
25
32.5
38.5
50
Coupling Pipe Length
L
45
50
58
60
62
70
Length
L1
55
62
73.5
75.5
78
92
Coupling Thread
d
R1/2
R3/4
R1
R1-1/4
R1-1/2
R2
Nut Thread
D
G3/4
G1
G1-1/4
G1-1/2
G2
G2-1/2
Dimension
D1
33.5
41
51.8
60.5
71
89
Gasket Thickness
3
3
3
3
3.5
4
Wrench Size
W
30
37
47
54
67
84
