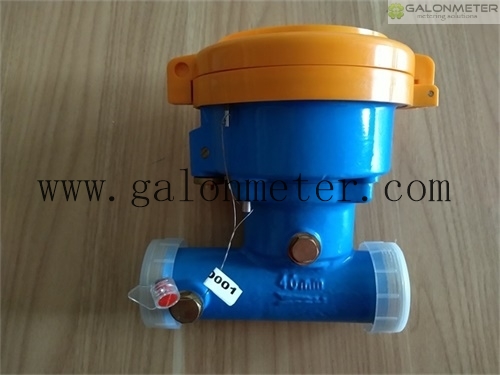

GALONMETER CONTROL WATER METER is commonly used in the textile, tanning, paper, potting and chemical industries, also used for mixer truck, for controlling batched volume of the water passing through the pipe accurately, has the sizes from Dn32 to Dn50 designed by GALONMETER.
Characteristics:
GALONMETER BATCH CONTROL WATER METER was made of high quality material for most reliable service;
Can be used safely in water temperature up to 90℃;
Large dial plate for easy reading;
Glass wiper for cleaning;
Horizontal or Vertical installation with possibility of the dial plate position asHorizontal Installation
Vertical Installation

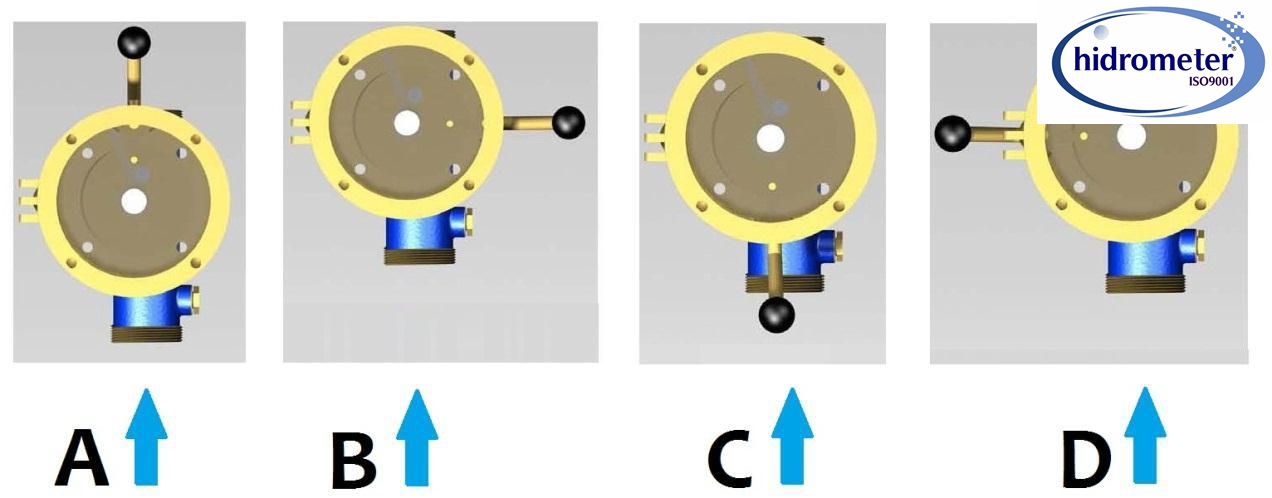

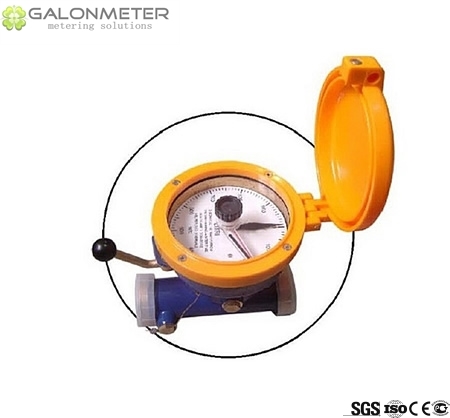

Manual reset the reading to zero with the possibility of the handle position as:

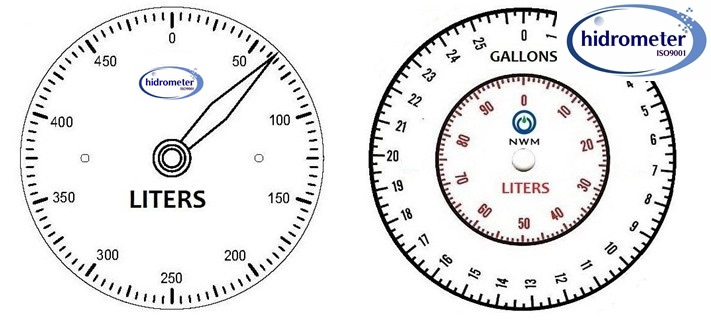

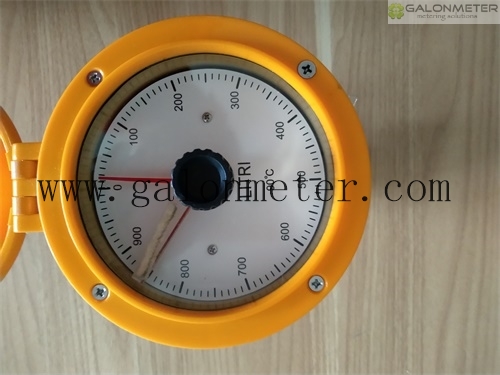

Dial Plate in LITERS OR both GALLONS and LITERS:
Dimension:Size
Dn25
Dn32
Dn40
Dn50
Dn50-Flange
Length
L
260
260
170
200
200
Body Thread
D
G1-1/4B
G1-1/2B
G2B
G2-1/2B
X
Meter Height
H
186
186
193
193
238
Working Height
H1
325
325
332
340
377
Width
W
210.5
210.5
210.5
210.5
229
*Dn50 with possibility of the Thread ends and the Flange ends.Size
mm
Dn25
Dn32
Dn40
Dn50
Qmax
m3/h
7
12
20
30
Qn
m3/h
3,5
6
10
15
Qt
l/h
280
480
800
1200
Daily delivery
m3
35
60
200
300
Dial reading
liters
100-200-500
100-200-500-1000-2000-5000
500-1000-2000-5000
Max permission error:
From Qt including Qt to Qmax: +/-3% for hot water and +/-2% for cold water.Selecting the proper size of meter:
For selecting the proper size should follow the table with maximum flow rate
(Q) in m3/h and the maximum daily delivery (E) in m3 as:
3.6V/t<Q
V=batch volume of the water in liters
T=time per batch in seconds
Q=maximum flow rate in m3/h
For maximum service life should follow:nhV/1000<E
n=number of batch per hour
h=number of working hour
V=batch volume of the water in liters
E=maximum delivery in m3
For keeping the accuracy, the flow rate (Q) should be not less than Qt.
The flow rate is easily calculate by the water was collected in a calibration tank for a measured period of time. For example, 15 liters are collected in 30 seconds, the flow rate will be: 3600/30*15=1800l/h.
For selecting the dial reading, the maximum dial reading should always exceed the highest expected batch volume.
