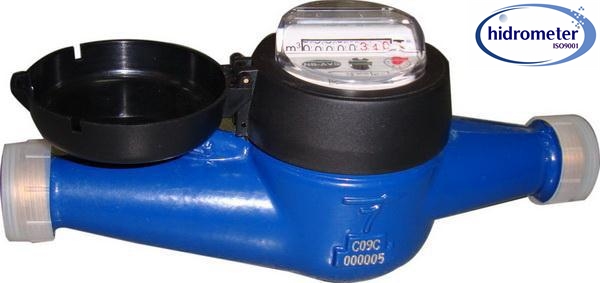

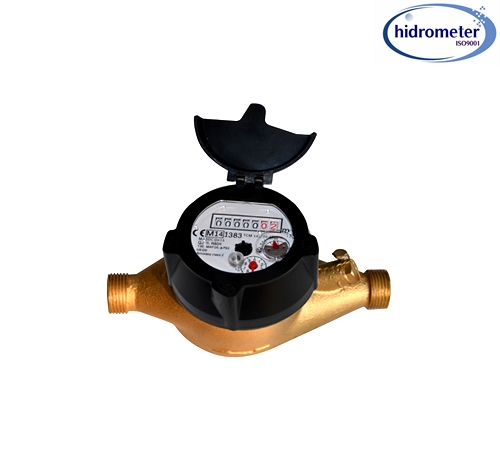

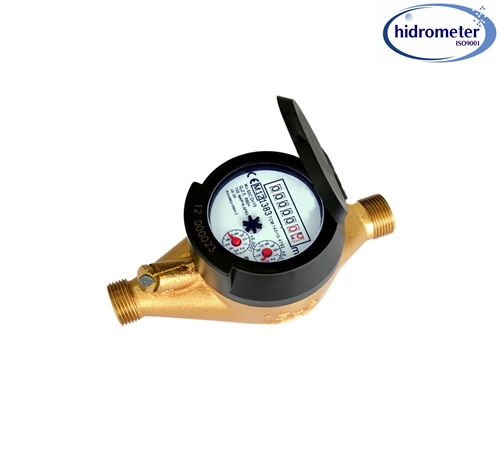

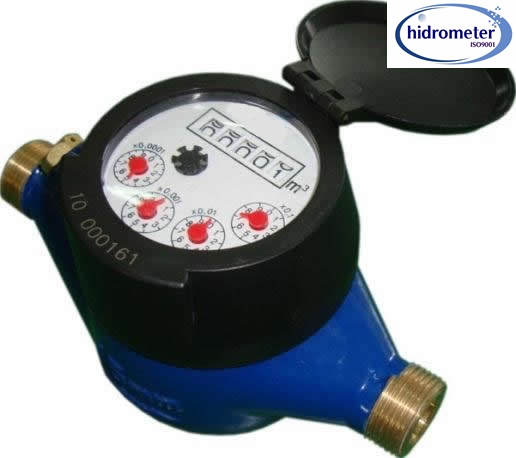

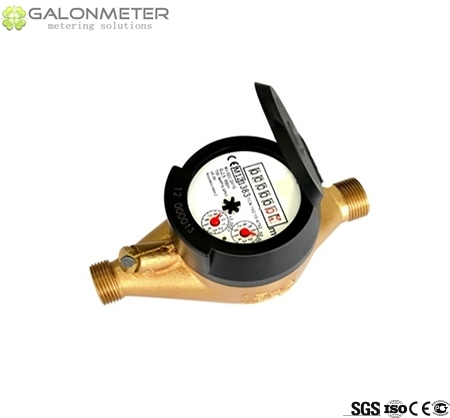

Multi jet Dry-G type water meter

GALONMETER GL-MJ-G 15-50 is IMPELLER (turbine) water meter with magnetic transmission, dry type register for residential application with sizes from Dn15 to Dn40 designed by GALONMETER and meets to the requirements of Directive 2004/22/EC on measuring instruments and of European Standard EN14154.

Characteristics:
All the Materials in contact with water, consciously selected by the known resistance to corrosion;
Cold water meter under current standard for lower than 30℃(T30), but GALONMETER GL-MJ-G 15-50 can
be used safely in water temperature up to 50℃(T50);
The ROTARY indicator register for the most comfortable reading position of 5 Rollers (Dn40 with 6 Rollers) and 4 Pointers;
The Impeller is the only moving parts in contact with water permitting the most reliable;
The extra inlet filter at the inlet of the meter body permits cleaning it without breaking the metrological seal;
The conception of the Magnetic Protection to against the external influences;

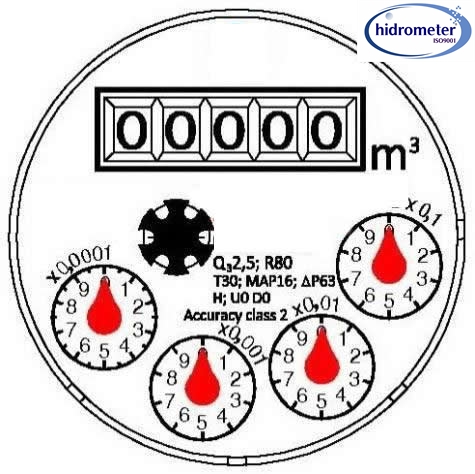

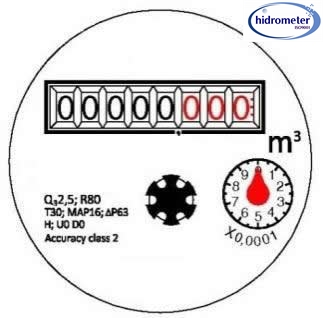

Non Return Valve to avoid the reserve flow Rate AS OPTION; Dial Plate Design:

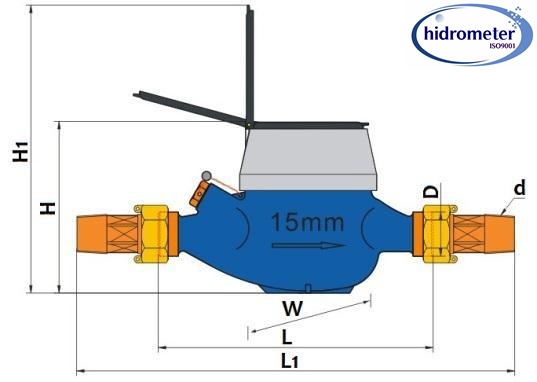

Dimension:

L1: the total length with connection and the gasket without compression.
Main Technical Data:

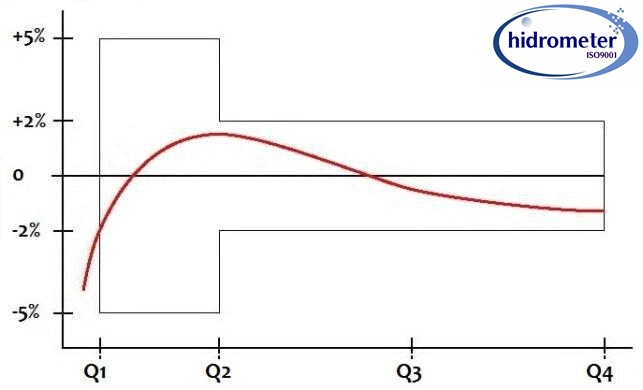

Max. Permission Error:
From Q1 inclusive up to but excluding Q2 is ± 5%;
From Q2 inclusive up to and including Q4 is ± 2% for T30 and ± 3% for T50;

OPTION VISION of MJ-SDC G:

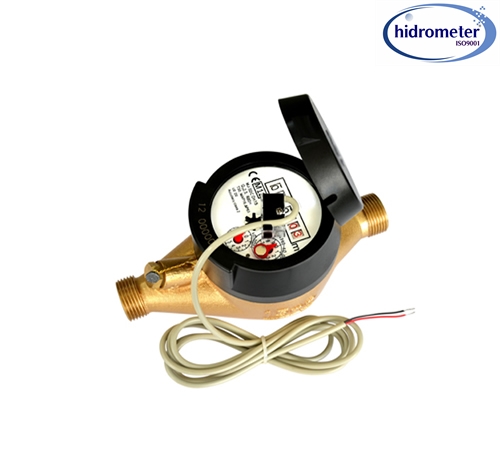

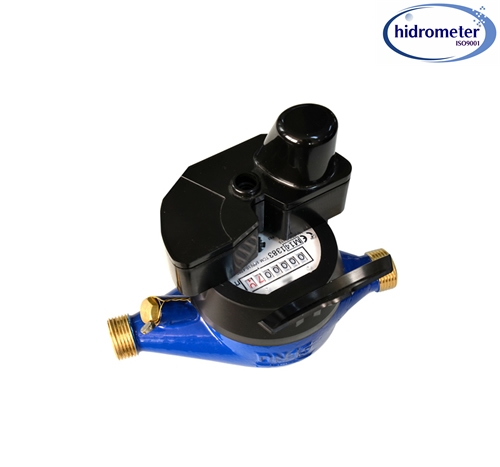

PULSE OUTPUT PRE-EQUIPPED OR PULSE OUTPUT VISION:
The Pulse Emitter Device consists of a plastic housing with Reed Switch, and 1,5 m cable with 2 cores in Red and Black.
Option with 2 reed switches and 1,5 m cable with 3 cores in Red, Black and Blue;
Electric Data: Vmax=24AC/DC; Imax=0,01A
Capacity of the Pulse Emitter:

VISION of COPPER CAN REGISTER with IP68 protection;

VISION of 5 BLACKS ROLLERS, 3 RED ROLLERS and 1 RED INDICATOR POINTER for Dn15 to Dn32 and 6 BLACKS ROLLERS, 2 RED ROLLERS and 2 RED INDICATOR POINTERS for Dn40;

VISION of the inclined register;
