  • The name :

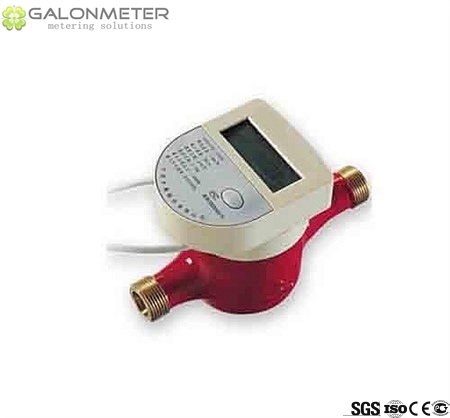

    Multi jet heat meter

  • Product Description
  • .ultra reliable metering
    .Excellent long-term stability and reliability
    .Battery powered -10 years life expectancy
    .AMR and cellular networks ready with various output model
    .Programmable Display (units and outputs resolution)

  • Model : GL-HM


Application
For measuring the heat which, in a heat-exchange circuit, is absorbed or given up by water called the heat-conveying liquid.
Application in household-based heating system and air conditioner cooling system.

Construction
The compact head meter consists of a flow sensor, a temperature sensor and a calculator.

Features

Wi th external regulating device.
The calculator displays all actual and fixed date related data ergonomically operated by one push button.
The calculator can rotate 360°, can taken off from the meter for easily reading in any position.

The flovsensor  sensor measures the flow rater of the hot water passing through the heat exchange system and transfer the result to the calculator by pulse.The temperature sensor measures inlet temperature and outlet temperature of the heat exchange system. Calculate formula:

Q :  The heat which is absorbed or given up in a heat-exchange circuit.
r:   Density of the hot water.

V :   Volume of the hot water through the heat exchange system.
h: Enthalpy difference under the condition of inlet temperature and outlet temperature of the heat exchange system.


Dimensions and Weights

Nomi nal diame ter

DN

15

20

25

Body thread

D

G3/4B

G1B

G1 1/4B

Connector thread

d

R1/2

R3/4

R1

Body length

mm

L

165

130/165

165

Overall length

mm

L1

259

234/269

285

Meter height

mm

H

116

116

116

Inlet central line height

mm

H1

35

35

35

Height

mm

H2

165

165

165

Wi dth

mm

W

93

93

93

Wi dth

mm

W1

114

114

114

Weight without connectors

Kg

1.4

1.38/1.45

1.5

Weight with connectors

Kg

1.58

1.66/1.73

2.02

“L1" is the total length when coupling gaskets without compression.







Technical Data

Flow Sensor

Nomi nal diame ter

DN

15/20/25

Maximum flow rate

m3 /h

Qmax

2.0

Nominal flow rate

m3 /h

Qn

1.0

Minimum flow rate

l/h

Qmin

20

Temperature range

°C

4~95

Working pressure

bar

≤10

Head loss (at Qn)

bar

≤0.25



Temp erature Sensor

Nomi nal diame ter

DN

15/20/25

Technology

Pt1000

Type of connection

2-wires

Temperature range

°C

0~105

Cable length

m

1.5



Calculator



Installation


The compact heat meter should be selected according to working flow of the heating system or air conditioner cooling system, not just the diameter of the pipeline.It is necessary to install a strainer at the inlet of the compact heat meter and clean the strainer timely.The meter must be installed with the direction of the flow as indicated by the arrow cast in the meter body. The meter where the meter is installed should apart from those insolation,  pollution and frozen etc. place. A horizontal position is recommended.The compact heat meter can be installed at the inlet or outlet of heat exchange system.Wh en users order the comp act heat me ter, position of the heat me ter in the system mu st be ma rked.

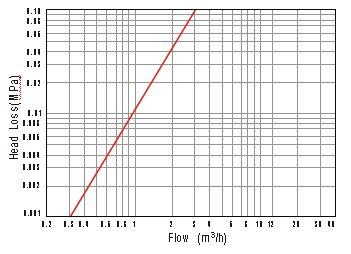

Hea d Loss Curve
