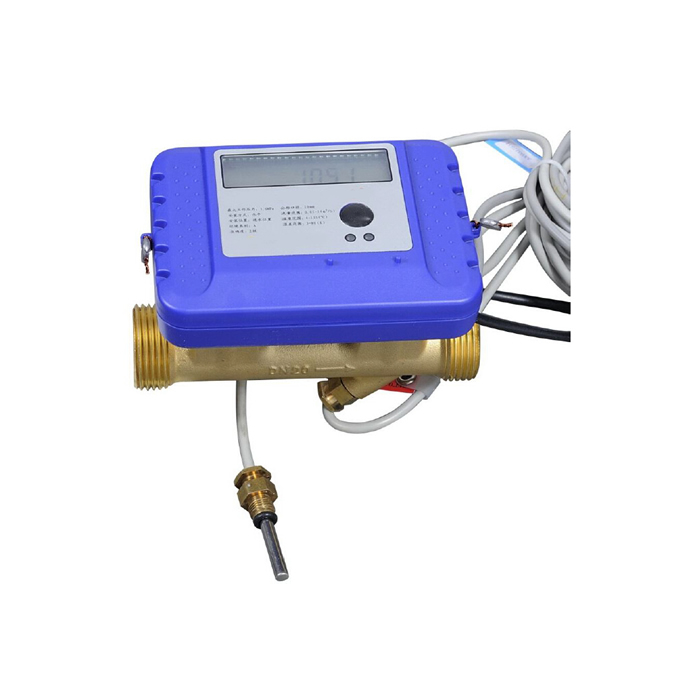

GALONMETER GL-UL-HM ENERGY METER can be used for measuring the energy consumption in heating / cooling application,with the size from Dn20 to Dn40,designed by GALONMETER and Standard CJ128-2007.
CONSTRUCTION and CHARACTERITICS:
GALONMETER GL-UL-HM Consists of three basic components:main case with flow sensor,temperature sensor and calculator.
.No moving parts permitting the most reliable and longer term life;
.High accuracy in Class 2;
.Installation method:supply or return flow at horizonta;General:
Application
Heating-Cooling-Heating/Cooling
Approval
CJ128-2007
Protection Class
IP54
Battery Supply
3,6VDC;6 to 8 years lifetime
Temperature Sensor type
PT1000 platinum sensor;5,2mm
Cable Length of Temperature Sensor
1,5m
Measuring Circle Volume
1 second
Testing Possibilities
Vis display or Infrared Sensor Communication
